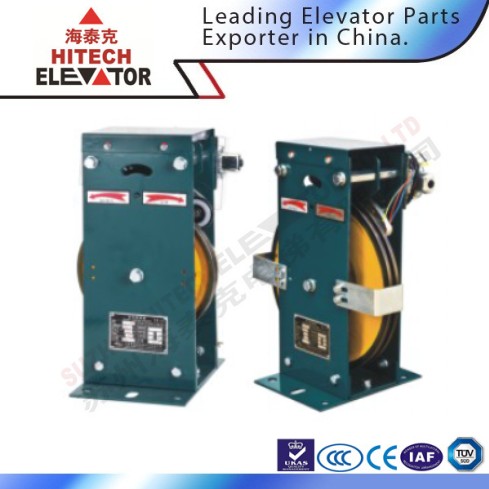

Product name : Elevator Speed Governor/HI-OX187
FOB Price :
Port : Shanghai
Minimum Order Quantity : 1
Supply Ability :10000
Payment Terms : T/T
Brand Name :Hitech
Details








If the elevator descends with excessive speed, the descending brake will be used to support the general descending safety gear, enable the safety gear, and stop the car, playing the role of descending over-speed protection.

If the elevator ascends with excessive speed, the over-speed switch can be turned off to cut off the power and stop the car, playing the role of ascending over-speed protection.

The remote automatic reset is available.

The electromagnet switch can be used to detect the actuation of the speed governor, and detect the elevator.



Super switch voltage grade: AC220V/DC24V

Switch voltage grade: AC220V/DC24V

Action magnet voltage grade: AC220V/DC24V

G Sheave diameter (mm) Wire rope diameter (mm) Rated speed Tension force
G01 Φ200 Φ6,Φ6.3 v≤ 1.0m/s ≥500N



G Sheave diameter (mm) Wire rope diameter (mm) Rated speed Tension force
G02 Φ240 Φ6,Φ6.3, Φ8 v ≤ 1.75m/s ≥500N



product pictures.jpg

Product Name Description
Bi-directional Overspeed Governor Model HI-OX240F
Rated Speed <=2.5m/s
Wire Rope Diameter(mm) Φ6, Φ8
Sheave Diameter(mm) Φ240mm
Tension Force >=1000N
Overspeed Switch Voltage AC220V
Bi-directional Overspeed Governor Model HI-OX240B
Rated Speed <=2.5m/s
Wire Rope Diameter(mm) Φ6, Φ8
Sheave Diameter(mm) Φ240mm
Tension Force >=1000N
Overspeed Switch Voltage AC220V
Bi-directional Overspeed Governor for MRL Model HI-OX240E
Rated Speed <=0.63m/s
Wire Rope Diameter(mm) Φ6, Φ8
Sheave Diameter(mm) Φ240mm
Tension Force >=1000N
Overspeed Switch Voltage AC220V/DC24V
Switch Electromagnetic Voltage AC220V/DC24V
Action Electromagnetic Voltage AC220V/DC24V
Uni-directional Overspeed Governor for MRL Model HI-OX240A
Rated Speed <=1.75m/s
Wire Rope Diameter(mm) Φ6, Φ8
Sheave Diameter(mm) Φ240mm
Tension Force >=1000N
Overspeed Switch Voltage AC220V/DC24V
Switch Electromagnetic Voltage AC220V/DC24V
Action Electromagnetic Voltage AC220V/DC24V
Bi-directional Overspeed Governor for MRL Model HI-OX187
Rated Speed <=1.75m/s
Wire Rope Diameter(mm) Φ6, Φ8
Sheave Diameter(mm) Φ240mm
Tension Force >=500N
Overspeed Switch Voltage AC220V/DC24V
Switch Electromagnetic Voltage AC220V/DC24V
Action Electromagnetic Voltage AC220V/DC24V
Bi-directional Overspeed Governor for MRL Home Elevator Model HI-OX186
Rated Speed <=0.63m/s
Wire Rope Diameter(mm) Φ6
Sheave Diameter(mm) Φ200mm
Tension Force >=500N
Overspeed Switch Voltage AC220V/DC24V
Switch Electromagnetic Voltage AC220V/DC24V
Action Electromagnetic Voltage AC220V/DC24V
Uni-directional Overspeed Governor Model HI-OX240
Rated Speed <=2.5m/s
Wire Rope Diameter(mm) Φ6, Φ8
Sheave Diameter(mm) Φ240mm
Tension Force >=1000N
Overspeed Switch Voltage AC220V/DC24V







packing and shipment.jpg

Porducts can be packed in wooden cases and carton box
