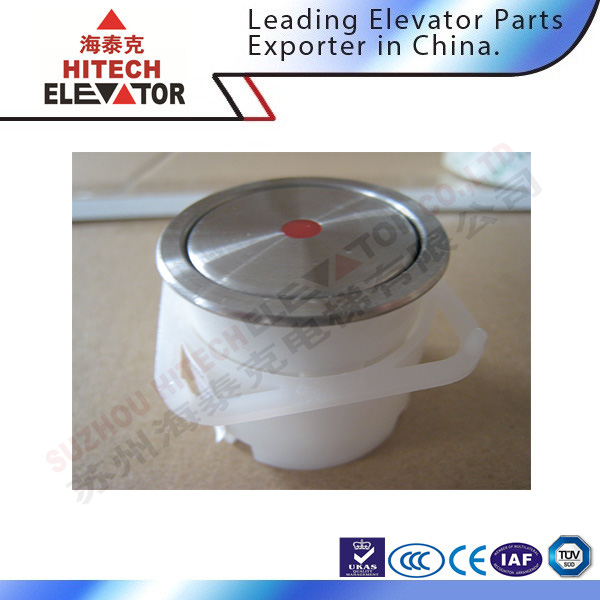

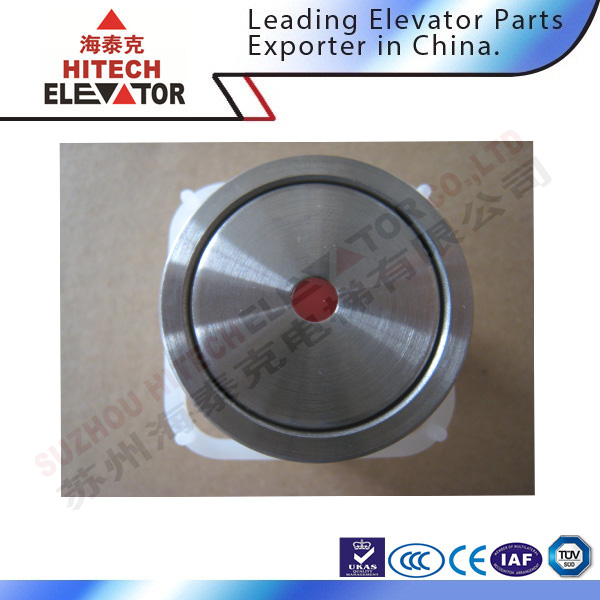

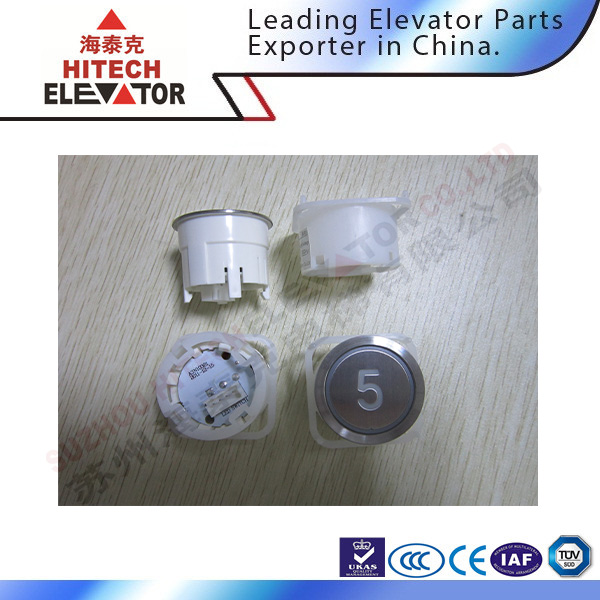

Product name : Elevator Push Button/BA21C
FOB Price :
Port : Shanghai
Minimum Order Quantity : 1
Supply Ability :10000
Payment Terms : T/T
Brand Name :Hitech
Details









1.Slim design

2.Anti-vantal

3.Big size,dual light,touch

4.Bus wiring push button

5-wire bus conection, save wiring cost, improve installation efficiency

6-Surface with stainless steel, translucent display.(Braille available)

7,The usual lighting color of button is red,however blue, green, while are optional

8.Installed by screw structure,suitable for 2-6mm panel.

9. Signal type: 'digits','up','down','close','open','alarm','intercom' and so on.



Electrical Properties Indication light Rated Voltage(optional) DC12V,DC24V
Rated Current less than 30mA
switch Rated Voltage DC24V
Rated Current 50mA
Contact Resistance less than100mΩ
Insulation Resistance more than 100mΩ
Mechanical Properties Operation Distance 0.3-0.7mm
Maximum Distance 0.8mm
Operation Pressure 3-6N
Life-Span more than1 millions of operaration
Operating Environment Operating Temperature -10 to 50 centigrade(no iceing)
Operating Humidity 45%-90%
