Product name : Monarch Intergrated Controller/Nice3000+
FOB Price :
Port : Shanghai
Minimum Order Quantity : 1
Supply Ability :10000
Payment Terms : T/T
Brand Name :Hitech
Details








NICE 1000 Elevator Integrated Controller

The NICE1000 is an independently developed integrated controller specifically for elevators designed by MCTC. Focusing on electronic systems in elevators, MCTC uses an entirely parallel signal transmission method, combining the advantages of high stability, ease of use and no need for adjustment that allow this perfect integration to be used in both private and cargo elevators



Input Voltage: Three Phase 220V, Three Phase 380V

Power Capacity (kVA): 4.0~40

Input Current (A): 13.2~62

Output Current (A): 9.6~60

Appropriate Motor (kW): 2.2~30

Monarch Elevator/Lift controller/NICE1000

Monarch lift/elevator controller/elevator controller/NICE1000-NICE-L-G/V-4003

Monarch lift/elevatorcontroller/elevator controller/NICE1000-NICE-L-G/V-4005

Monarch lift/elevatorcontroller/elevator controller/NICE1000-NICE-L-G/V-4007

Monarch lift/elevator controller/elevator controller/NICE1000-NICE-L-G/V-4011

Monarch lift/elevator controller/elevator controller/NICE1000-NICE-L-G/V-4015

Monarch lift/elevator controller/elevator controller/NICE1000-NICE-L-G/V-4018

Monarch lift/elevator controller/elevator controller/NICE1000-NICE-L-G/V-4022

Main parameters of NICE 1000 elevator integrated controller

Model  Input voltage Capacity  Input current  Output current Adoptable motor
(KVA) (A) (A) (KW)
NICE-L-G/V-2002  3-phase 220V 4 13.2 9.6 2.2
NICE-L-G/V-2003  range:-15%~20% 5.9 17 15.6 3.7
NICE-L-G/V-4002 3-phase 380V 4 6.5 5.1 2.2
NICE-L-G/V-4003  range:-15%~20% 5.9 10.5 9 3.7
NICE-L-G/V-4005   8.9 14.8 13 5.5
NICE-L-G/V-4007   11 20.5 18 7.5
NICE-L-G/V-4011   17 29 27 11
NICE-L-G/V-4015   21 36 33 15
NICE-L-G/V-4018   24 41 39 18.5
NICE-L-G/V-4022   30 49.5 48 22
NICE-L-G/V-4030   40 62 60 30



The products with the input voltage 220V correspond to 3- phase inputting. If the input voltage is single phase, it shall match with a larger frequency. For example,NICE-L-G-2003 can be used in the situation that single phase inputting 220V to drive the motor with 2.2 KW.





 Monarch Elevator/Lift controller/NICE3000

The NICE 3000 series of integrated controllers for elevators was independently developed and manufactured by MCTC, organically combining elevator control and motor drive to Create a new generation of intelligent, vector integrated controllers for elevators. The NICE3000 control system mainly includes a NICE3000 integrated controller for elevators, a carriage control board (MCTC-CTB-A), a display control board (MCTC-HCB-H), a carriage command board (MCTC-CCB-B)



 Model

 Capacity(kVA)

 Input current(A)

  Output current(A)

  Adoptable motor(kW)

Single phase 220V, range-15%~20%

NICE-L-A/B-2002

2.3

13.2

5.2

1.1

NICE-L-A/B-2003

3.4

17

7.5

1.5

220-NICE-L-A/B-4007

9.8

29

10.3

5.5

220-NICE-L-A/B-4011

12.1

36

15.5

7.5

220-NICE-L-A/B-4015

13.9

41

19

11

220-NICE-L-A/B-4018

17.3

49.5

22.5

15

220-NICE-L-A/B-4022

23.1

62

27.7

15

220-NICE-L-A/B-4030

33

77

34.6

22

3-phase 220V,range -15%~20%

NICE-L-A/B-2002

4

13.2

9.6

3.7

NICE-L-A/B-2003

5.9

17

14

5.5

220-NICE-L-A/B-4007

17

29

18

11

220-NICE-L-A/B-4011

21

36

27

15

220-NICE-L-A/B-4015

24

41

33

22

220-NICE-L-A/B-4018

30

49.5

39

22

220-NICE-L-A/B-4022

40

62

48

22

220-NICE-L-A/B-4030

57

77

60

22

3-phase 380V,range -15%~20%

NICE-L-A/B-4002

4

6.5

5.1

2.2

NICE-L-A/B-4003

5.9

10.5

9

3.7

NICE-L-A/B-4005











Monarch lift/elevator controller/elevator controller/NICE1000-NICE-L-C-4003

Monarch lift/elevatorcontroller/elevator controller/NICE1000-NICE-L-C-4005

Monarch lift/elevatorcontroller/elevator controller/NICE1000-NICE-L-C-4007

Monarch lift/elevator controller/elevator controller/NICE1000-NICE-L-C-4011

Monarch lift/elevator controller/elevator controller/NICE1000-NICE-L-C-4015

Monarch lift/elevator controller/elevator controller/NICE1000-NICE-L-C-4018

Monarch lift/elevator controller/elevator controller/NICE1000-NICE-L-C-4022

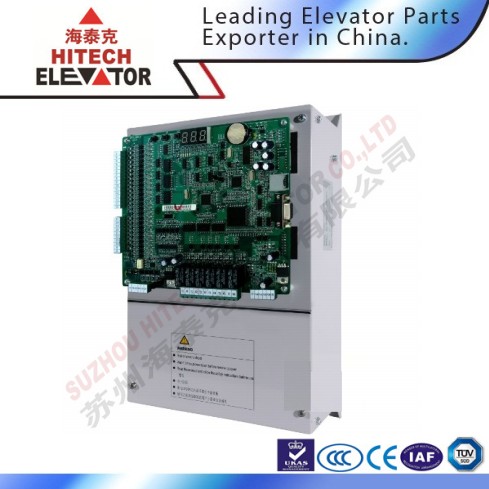

 product pictures.jpg

Competitive Advantages

Rich experience in elevator business with a professional team of elevator experts

Good quality products with low sales price to help customer save the cost

Cooperation with Chinese famous elevator parts manufacturers with low purchase price

A wide range of products listed in our website.

Easy access to the technical specifications and sales price

Mission and Services

To build up an one-stop elevator parts E-market for overseas buyers.

To help customers to source the cheapest but quality elevator parts.

To help customers to make a lift-parts package and ensure the timely delivery.

To offer free consultance in regard to elevator technology and business.

To develop and share market together with customers
